Wider outward-swing transfer tub for wheelchair users. 51.5" long by 31.75" wide by 40" high, 70-gallon soak.
| Model | Hydro Dimensions 3252W |
|---|---|
| Series | HD Specialty Series |
| Length | 51.5" |
| Width | 31.75" |
| Height | 40" |
| Operating capacity | 70 gallons |
| Door | Outward-swinging door |
| Shell | Gel-coat fiberglass |
| Origin | Temecula, California, USA |
| Warranty | Lifetime warranty on shell, frame, finish, door seal, motors and controls |
Every Hydro Dimensions tub arrives as a complete soaker: low step-in entry door, built-in contoured seat, angled interior grab bar, chrome Roman faucet with a 5-foot handheld shower wand, drain kit and overflow, and a textured non-slip floor. Oil-rubbed bronze and brushed nickel faucet finishes are available for an additional charge.
Build your 3252W: choose therapy, drag jets where you want them and get a spec sheet →

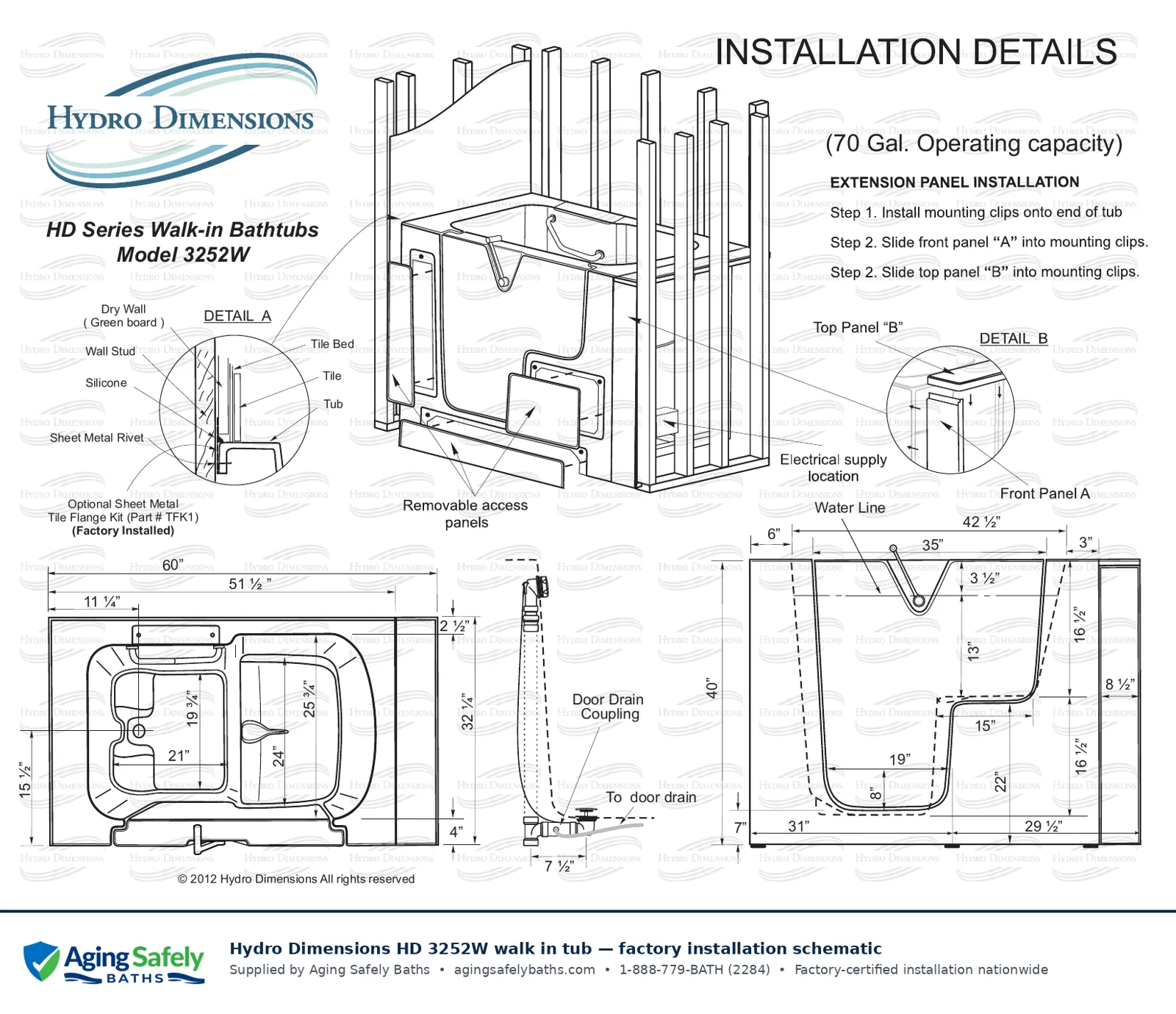

Straight from the factory drawing, every dimension exactly as published: top view, side and end elevations, drain and water line, door swing and extension panels. Tap to expand and zoom.
Contractors: measure the rough opening, drain location and door swing clearance off this sheet.
The 3252W is 51.5 inches long and 31.75 inches wide. Measure the alcove length, width and the narrowest doorway on the path to the bathroom, then send us the numbers. Extension panels close the gap in a standard 60-inch alcove, and we confirm fit before you order.
The tub stands 40 inches high and holds about 70 gallons, so water reaches the chest of a seated bather rather than the waist. If you have a 40-gallon water heater, ask us about fill times.
No. Hydro and air systems are plumbed into the shell at the factory, so choose your therapy package when you order. Heated seat, chromatherapy and aromatherapy are chosen at the same time.
No. We ship supply-only anywhere in the U.S. and Canada (free shipping to the lower 48 on many models, freight quoted for Canada) and you keep the factory warranty when the tub is installed to specification, and it holds when you install it yourself, with a 1-year labor warranty on self-installs. Or our factory-certified installers handle everything, usually in one day.
